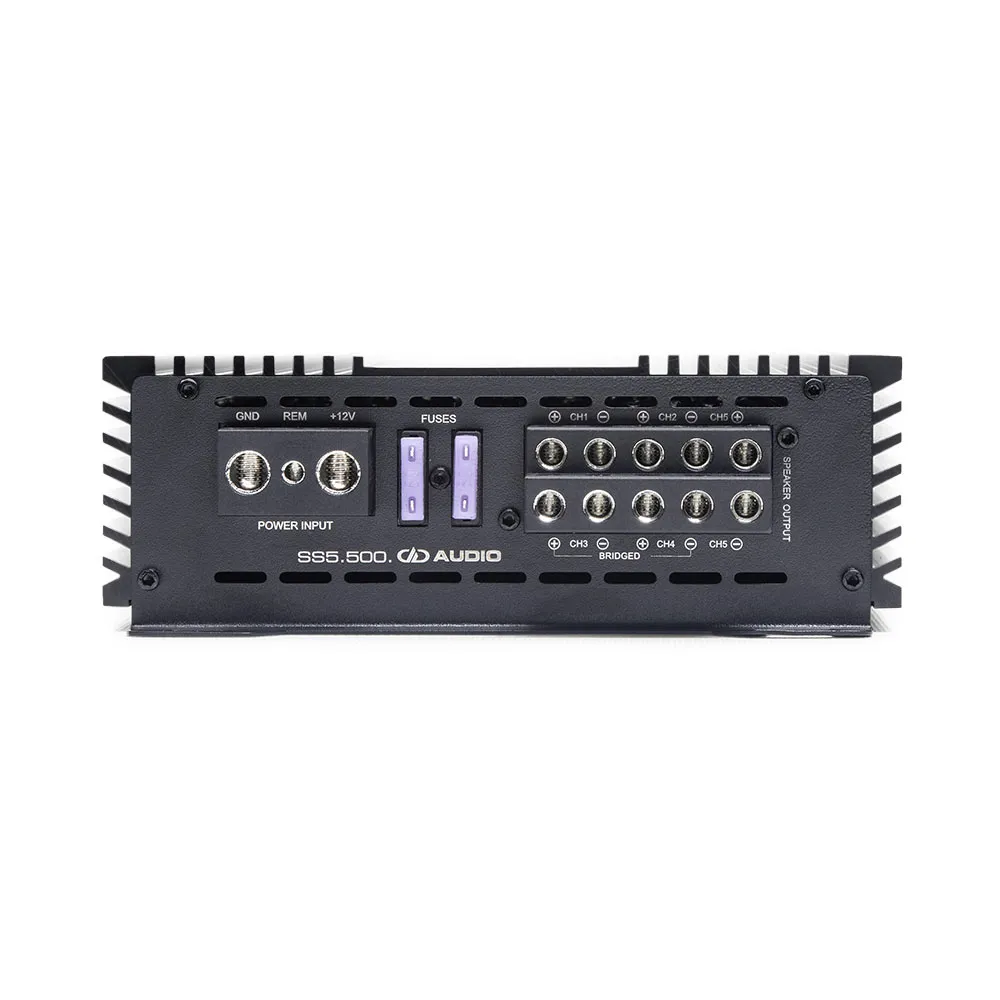

DD Audio SS5.500

Operating Voltage: 9 – 16
Test Voltage: 14.4
Input Channel(s): 6
Output Channel(s): 5
Continuous Wattage @4ohm: 80 x 4
Continuous Wattage @2ohm: 120 x 4
Continuous Wattage @1ohm: 500 x 1
Max Current Draw (Amps): 100
RCA Input Voltage Sensitivity: 6 – 0.25
High-Level Input Voltage Sensitivity: 20 – 1.1
RCA Input S/N: 95
Damping Factor: 100
THD: 1.0%
Bass Boost: 12
Frequency Response (Hz): 20 – 20k
High Pass Filter: 20 – 5k
Sub-Sonic Filter: 10 – 50
Low-Pass Filter: 50 – 5k
Remote Control: Remote Included in Box
Power Wire Gauge: 0
Speaker Wire Gauge: 12
Dimensions (MM): 340 x 185 x 60
