Name: HELIX NEXT V EIGHT DSP ULTIMATE
SKU: NEXT V EIGHT DSP
Availability: OutOfStock

Power RMS ≤ 1% THD+N
– @ 4 Ohms	Channel 1 – 8: 8 x 110 Watts
– @ 2 Ohms	Channel 5 – 8: 4 x 220 Watts
– @ 1 Ohm	–
– bridged @ 4 Ohms	–
– bridged @ 2 Ohms	–
Max. output power per channel*	Channel 1 – 8: up to 140 Watts RMS @ 4 Ohms Channel 5 – 8: up to 270 Watts RMS @ 2 Ohms
Amplifier technology	Class HD
Inputs	6 x RCA / Cinch 12 x Highlevel speaker input 1 x Optical SPDIF (12 – 96 kHz) 1 x Remote In 1 x USB Audio
Input sensitivity	RCA / Cinch: 1 – 8 Volts Highlevel: 4 – 32 Volts
Input impedance	RCA / Cinch: 25 kOhms Highlevel: 9 – 33 Ohms with ADEP.3

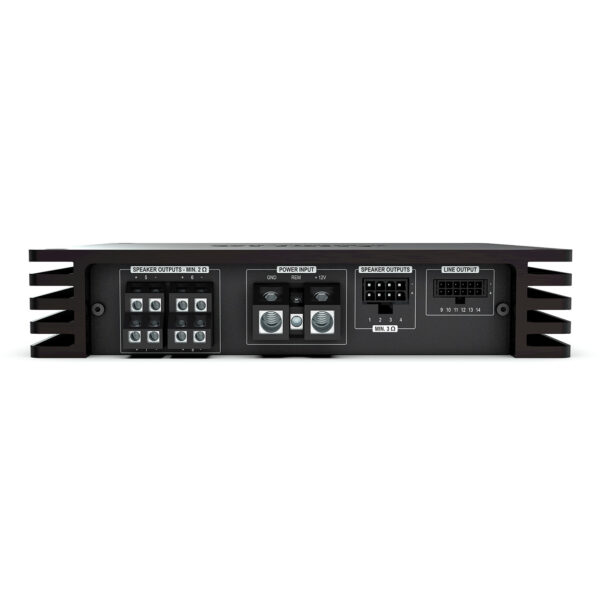

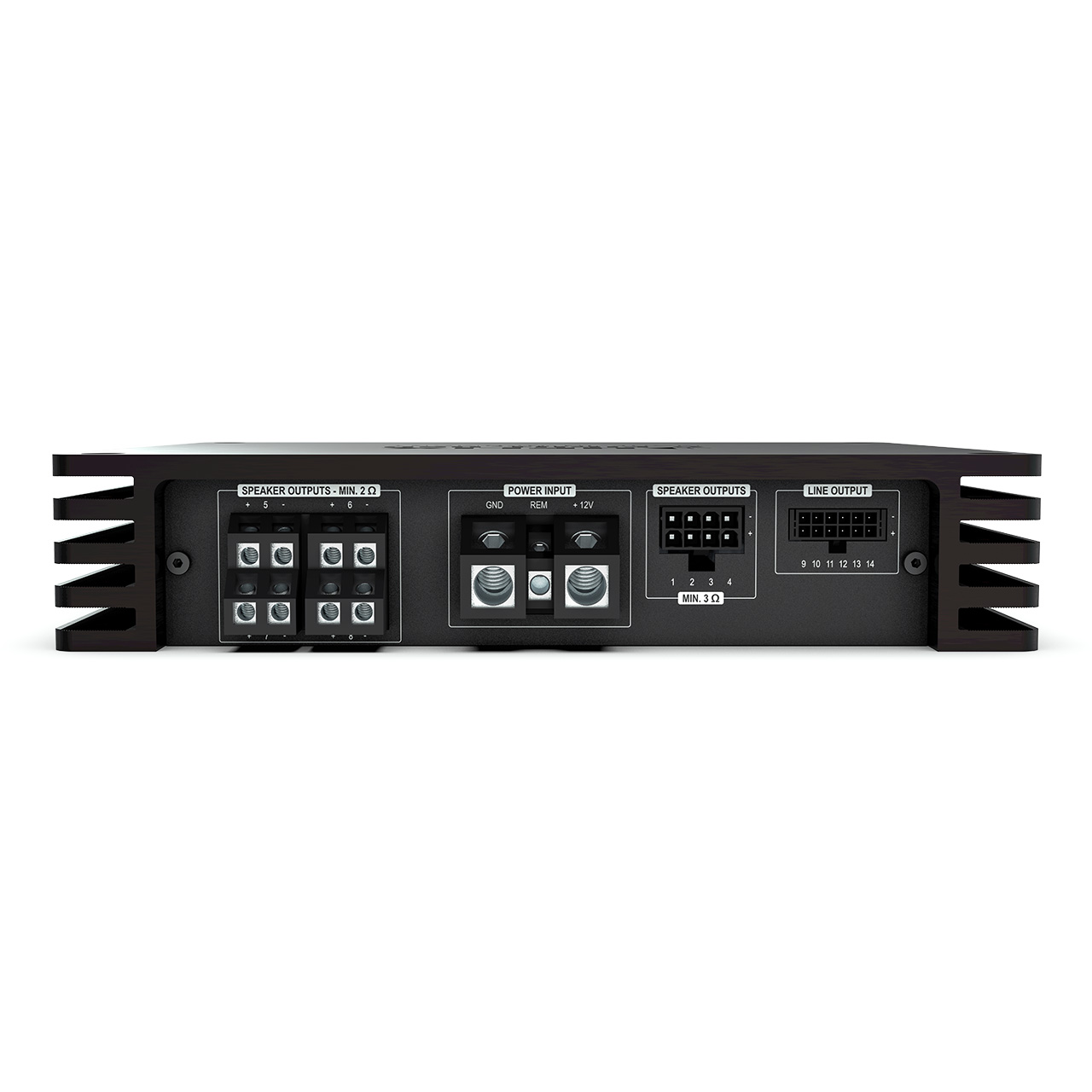

Outputs	8 x Speaker output 6 x RCA / Cinch 2 x Remote Out
Output voltage RCA / Cinch	3 Volts
Frequency response	15 Hz – 22,000 Hz
DSP resolution	64 Bit
DSP power	295 MHz (1.2 billion MAC operations/second)
Sampling rate	48 kHz
DSP type	Audio signal processor
Signal converters	A/D: BurrBrown 24 Bit D/A: BurrBrown 24 Bit
Signal-to-noise ratio (A-weighted)	Digital input: 107 dB Analog input: 102 dB
Distortion (THD @ 1 kHz, 1 W into 4 Ohms)	< 0.007 %
Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms)	< 0.009 %
Damping factor	100
Operating voltage	10.5 – 18 Volts (max. 5 sec.down to 6 Volts)
Power rating	DC 12 V ⎓ 110 A max.
Idle current	750mA
Max. remote output current	500 mA
Operating temperature range	-40 °C to +70 °C
Fuse	2 x 40 A LP-Mini-fuse (APS)
Additional features	32 Bit CoProcessor, Extension Card 2.0 slot, ADEP.3 circuit, Auto Remote switch, Smart Control Port, USB-C, USB PerfectStream
Dimensions (H x W x D)	44 x 220 x 180 mm / 1.73 x 8.66 x 7.09”
