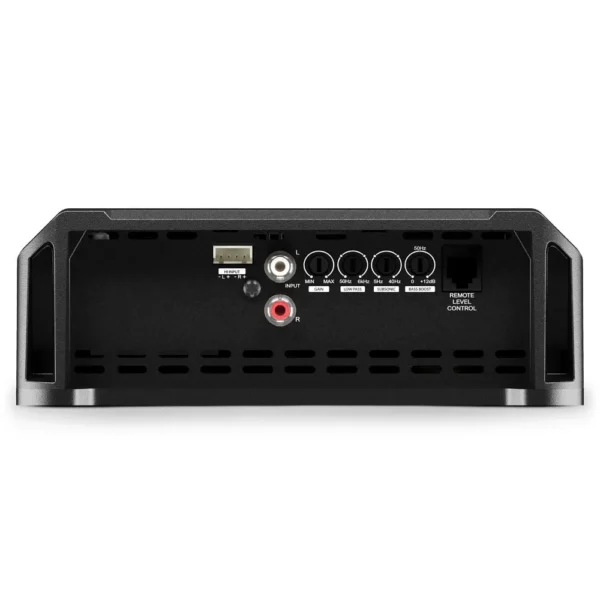

SounDigital 5000.1 EVO 5 – 2ohm

Power @ 1Ω: N/A
Power @ 2Ω: 1 X 5000 WRMS
Power @ 4Ω: 1 X 3300 WRMS

Frequency Response (-3dB):
5Hz ~ 6kHz
Low Pass filter (12dB/oct):
50Hz ~ 6kHz
Subsonic (12dB/oct):
5Hz ~ 80Hz
Operating Voltage:
8V ~ 16V
SNR:
90dB
Input Sensitivity (RCA):
0.2V ~ 2V
Input Sensitivity (High Level input):
1.2V ~ 12V
Current Draw (music):
230A
Current Draw (max.):
461A
Total Efficiency:
86%
Damping Factor (@100Hz nominal impedance):
2000
Power Cable:
50mm² (0 AWG)
Speaker Cable:
2 x 10mm² (7 AWG)
Recommended Fuse (music):
250A
Recommended battery (minimum):
250Ah
Width:
7.1″ / 18 cm
Length:
9.9″ / 25 cm
Height:
2.5″ / 6.32 cm
Weight:
6.06 lb / 2,75 kg
