| Power RMS ≤ 1% THD+N @ 14.4 V | |
| – @ 4 Ohms | 1 x 250 Watts |
| – @ 2 Ohms | 1 x 450 Watts |
| – @ 1 Ohm | 1 x 750 Watts* |
| – bridged @ 4 Ohms | – |
| – bridged @ 2 Ohms | – |
| Max. output power per channel | Up to 850 Watts RMS @ 1 Ohm |
| Amplifier technology | Class D |

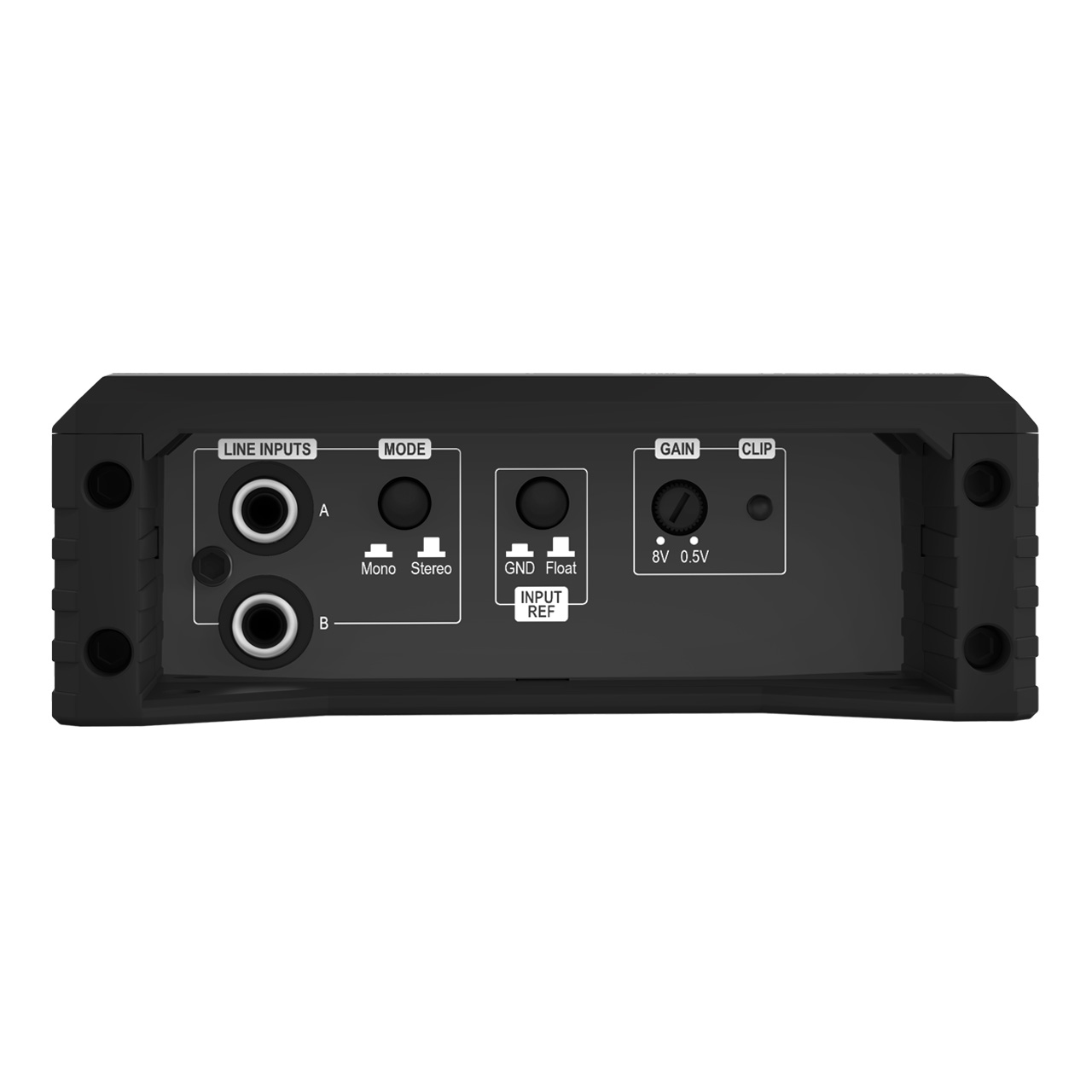

| Inputs | 2 x RCA / Cinch 1 x Remote In |
| Input sensitivity | 0.5 – 8 Volts |
| Input impedance | 8 kOhms |

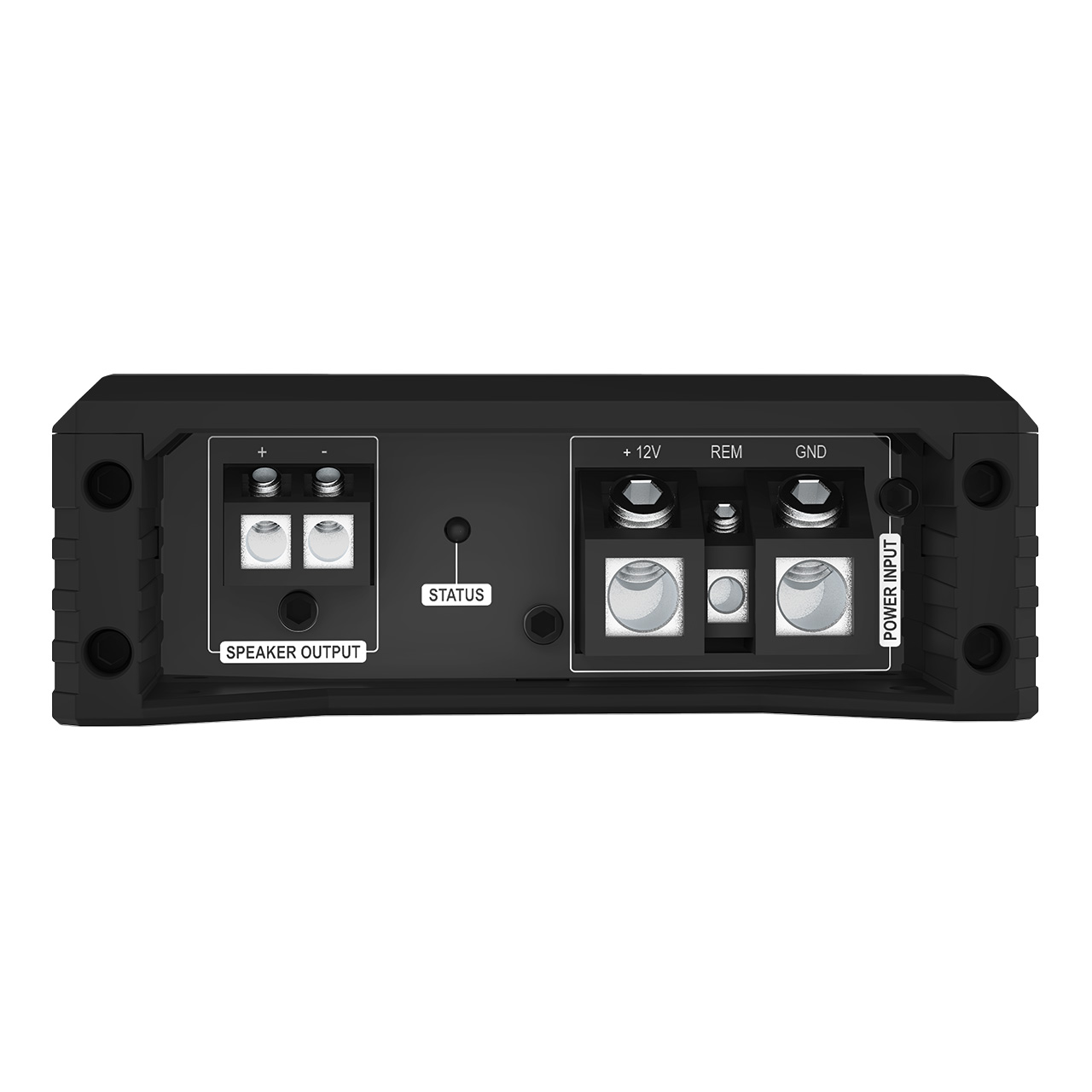

| Outputs | 1 x Speaker output |
| Output voltage RCA / Cinch | – |
| Signal converter for digital input | – |
| Frequency response | 10 Hz – 450 Hz |
| Bass boost | – |
| Highpass | – |
| Lowpass | – |
| Bandpass | – |
| Subsonic | – |
| Phase | – |
| Slope high- / lowpass | – |
| Slope subsonic | |
| Slope subsonic / lowpass | – |
| Signal-to-noise ratio (A-weighted) | 114 dB @ full power |
| Distortion (THD @ 1 kHz, 1 W into 4 Ohms) | – |
| Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms) | – |
| Distortion (THD @ 100 Hz, 1 W into 4 Ohms) | < 0.003% |
| Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms) | < 0.02 % |
| Damping factor | 200 |
| Operating voltage | 10.5 – 16 Volts (max. 5 sec. down to 6 Volts) |
| Idle current | 1,100 mA |
| Fuse | 2 x 30 A LP-Mini-fuse (APS) |
| Power rating | DC 12 V ⎓ 80 A max. |
| Operating temperature range | -40 °C to +70 °C |
| Additional features | Start-Stop capability, Clipping LED, DirectDSP inputs |
| Dimensions (H x W x D) | 40 x 248 x 114 mm / 1.58 x 9.76 x 4.49” |
* Continuous 1 Ohm power achieved only with music signal
