| Power RMS ≤ 1% THD+N | @ 14.4 V |
| – @ 4 Ohms | 6 x 100 Watts |
| – @ 2 Ohms | 6 x 190 Watts |
| – @ 1 Ohm | – |
| – bridged @ 4 Ohms | 3 x 380 Watts |
| – bridged @ 2 Ohms | – |
| Max. output power per channel* | Up to 240 Watts RMS @ 2 Ohms Up to 480 Watts RMS @ 4 Ohms bridged |
| Amplifier technology | Class D |

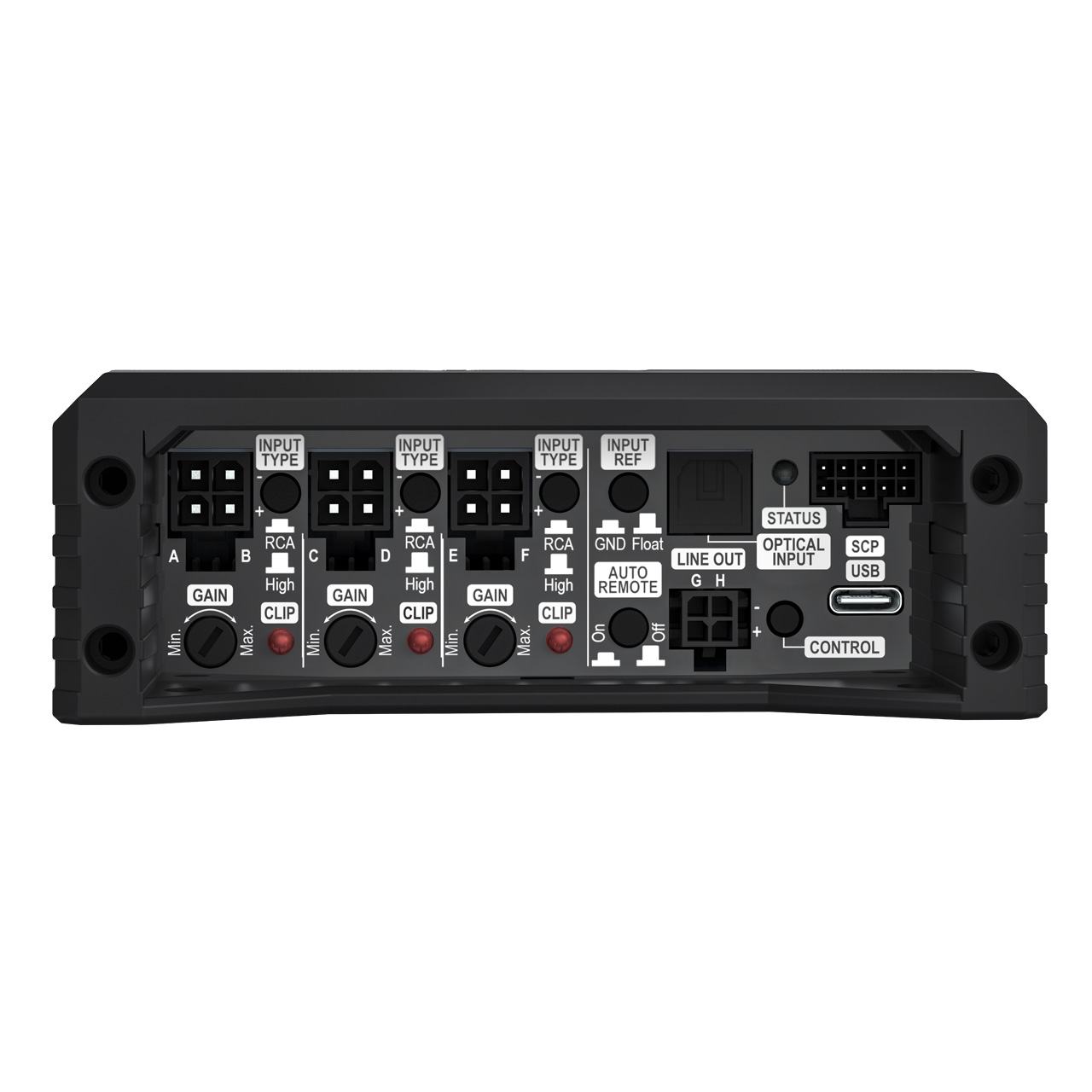

| Inputs | 6 x RCA / Cinch or 6 x Highlevel speaker input 1 x Optical SPDIF (12 – 96 kHz) 2 x Remote In |
| Input sensitivity | RCA / Cinch:1 – 8 Volts Highlevel: 2 – 16 Volts |
| Input impedance | RCA / Cinch 4,8 kOhms Highlevel 9 – 33 Ohms or 20 kOhms with ADEP.3 |

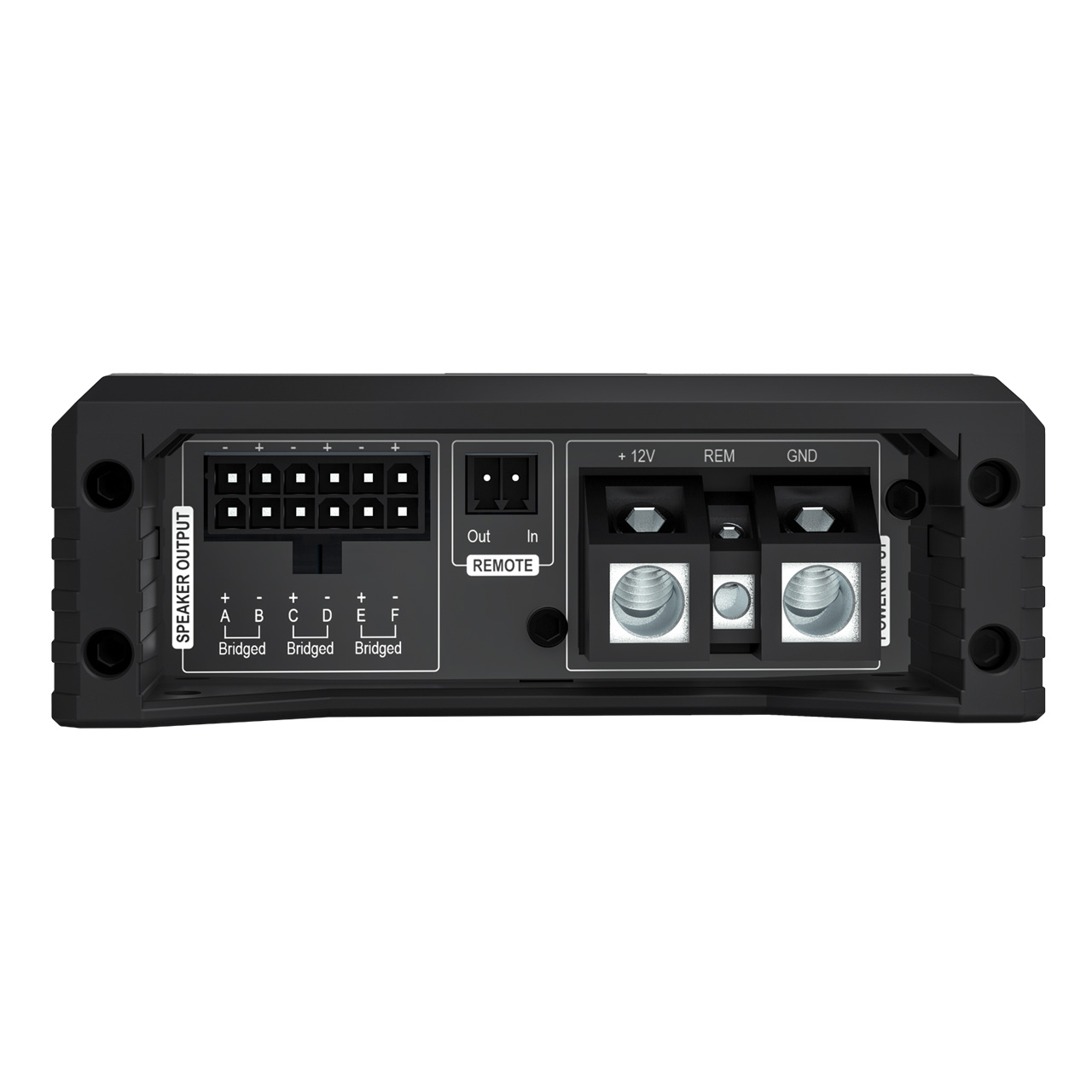

| Outputs | 6 x Speaker output 2 x RCA / Cinch 1 x Remote Out |
| Output voltage RCA / Cinch | 8 Volts |
| Frequency response | 20 Hz – 22,000 Hz |
| DSP resolution | 64 Bit |
| DSP power | 1 x 295 MHz (1.2 billion MAC operations/second) |
| Sampling rate | 48 kHz |
| DSP type | 1 x Audio signal processor |
| Signal converters | A/D: BurrBrown 24 Bit D/A: AKM 24 Bit |
| Signal-to-noise ratio (A-weighted) | Analog input: 99 dB @ full power Digital input: 102 dB @ full power |
| Distortion (THD @ 1 kHz, 1 W into 4 Ohms) | < 0.005 % |
| Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms) | < 0.02 % |
| Distortion (THD @ 100 Hz, 1 W into 4 Ohms) | – |
| Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms) | – |
| Damping factor | 70 |
| Operating voltage | 10.5 – 16 Volts (max. 5 sec. down to 6 Volts) |
| Power rating | DC 12 V ⎓ 93 A max. |
| Idle current | 1,100 mA |
| Max. remote output current | 500 mA |
| Operating temperature range | -40 °C to +70 °C |
| Fuse | 3 x 25 A LP-Mini-fuse (APS) |
| Additional features | ADEP.3 circuit, Smart Control Port, Auto Remote switch, 32 Bit CoProcessor |
| Dimensions (H x W x D) | 40 x 263 x 114 mm / 1.58 x 10.35 x 4.49” |
* One channel driven (≤ 10 % THD+N @ 14.4 V)
